Morris Instrumentation Valves
Morris instrumentation valves give plant operators the leak-tight shutoff, isolation and venting every measurement point depends on — bar-stock needle, gauge and block & bleed valves, instrument manifolds, in-line checks and high-pressure ball valves, rated to 6,000 psig and hydrostatically tested before shipment.
Industrial professionals rely on small-bore valves to isolate, equalize and vent every gauge, transmitter and sampling point in the plant. The Morris line covers the complete hookup: needle valves for shutoff and throttling, gauge and block & bleed valves for safe instrument maintenance, 2-, 3- and 5-valve manifolds for pressure and DP transmitters, in-line check valves against reverse flow, and high-pressure ball valves for hydraulic duty.
Valves are machined from bar stock or forgings in 316 SST — with 304, carbon steel, Hastelloy and Monel options — packed in PTFE or Grafoil, and rated to 6,000 psig @ 100°F metal seated. Every valve is hydrostatically shell tested at 1.5× working pressure and nitrogen tested at 1,000 psi for seat and packing leakage before it ships. Material traceability is standard.
Instrumentation Valve Categories
Needle Valves
- MN6K
- MN6KT
- MN10K
Gauge & Block-and-Bleed Valves
- MGV1
- MGV2
- MGV2-LE
- MGV-2B
Instrument Manifolds — MMV Series
- 2-valve (2VLV)
- 3-valve (3VLV)
- 5-valve (5VLV)
In-Line Check Valves
- MCKF
High-Pressure Ball Valves
- 36K
Needle Valves
Bar-stock body needle valves for shutoff and throttling on gauge and impulse lines — one-piece body construction for superior corrosion resistance, in straight, angle and cross patterns with panel mounting.
Technical data
- Sizes
- 1/4" – 1"
- End connections
- NPT, BSPP, BSPT, socket weld, butt weld, tube fitting
- Pressure rating
- 6,000 psig @ 100°F (414 bar @ 38°C), metal seated
- Temperature limit
- 450°F (232°C) PTFE packing · 1,000°F (538°C) Grafoil packing
- Body materials
- 316 SST, 304 SST, carbon steel, Hastelloy, Monel
- Stem
- Non-rotating tip, back-seated blow-out proof, hard & soft seated
Models
| Model | Sizes | Orifice | Cv range |
|---|---|---|---|
| MN6K | 1/4" – 1" | 0.14" – 0.37" | 0.31 – 2.4 |
| MN6KT | 1/8" – 1" | 0.10" – 0.39" | 0.31 – 2.4 |
| MN10K | 1/4" – 1" | 0.14" – 0.37" | 0.35 – 2.2 |

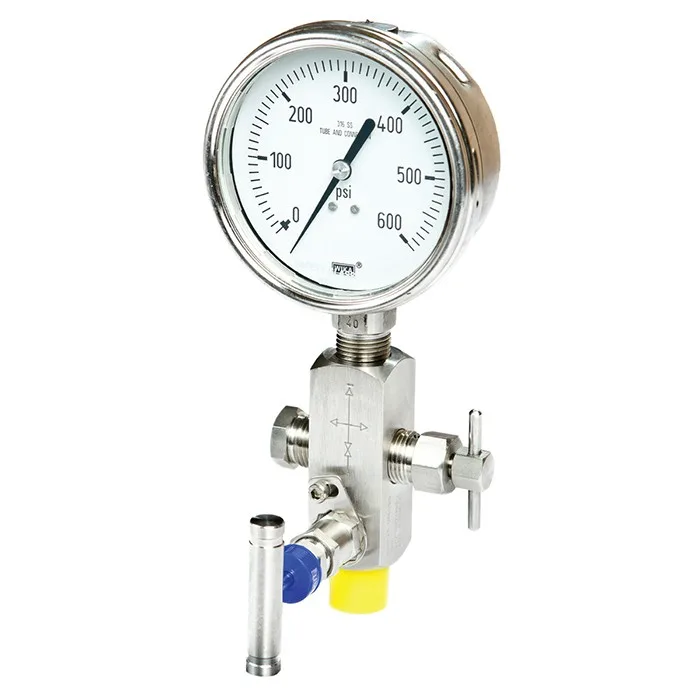

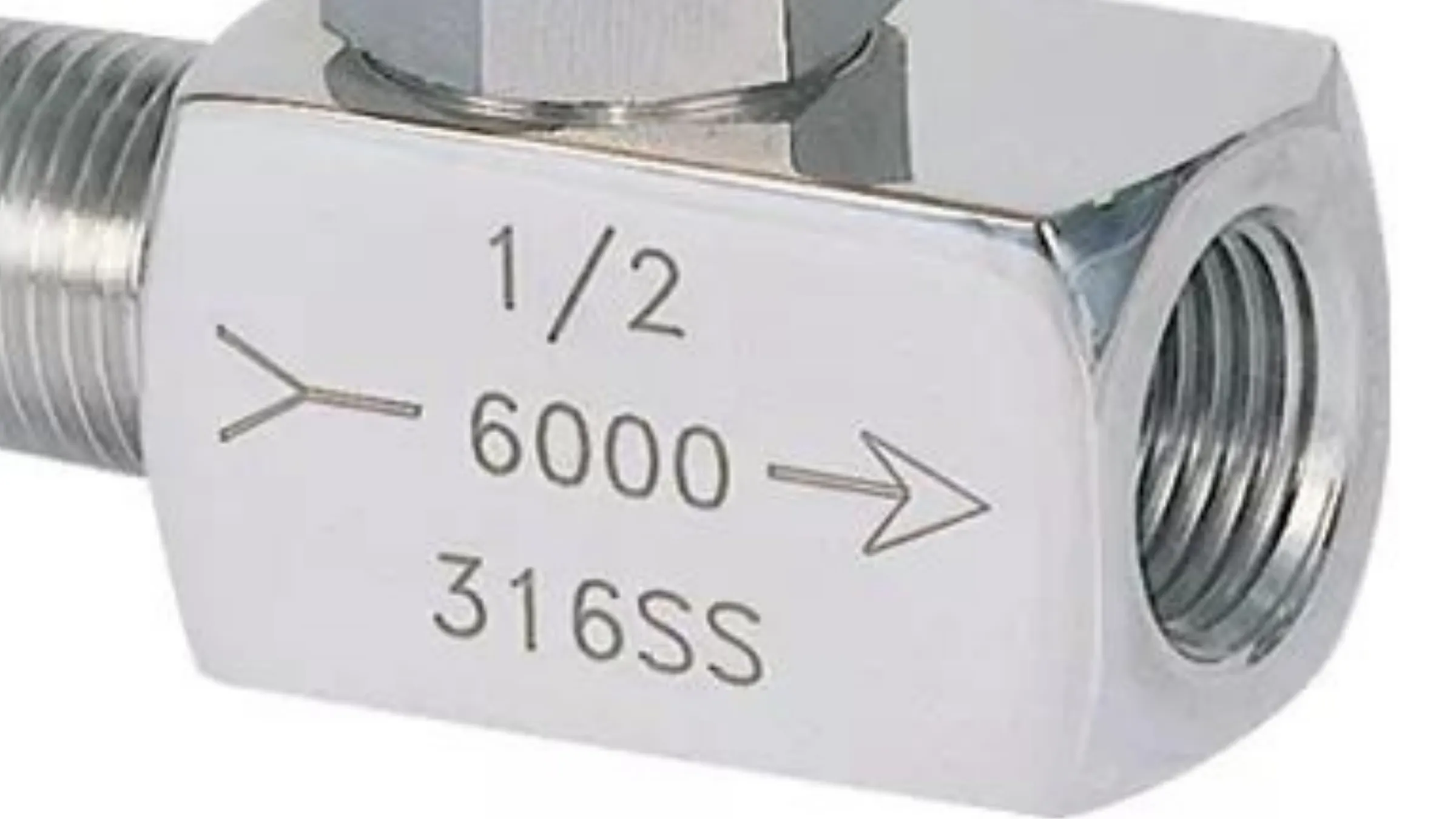

Gauge & Block-and-Bleed Valves
Bar-stock gauge valves and block & bleed configurations that isolate the instrument and vent trapped pressure safely before maintenance. Body in ASTM A182 F316 with silver-plated bonnet pusher for anti-galling and longer stem cycle life.
Technical data
- Sizes
- 1/4" – 3/4"
- End connections
- NPT, BSPP, BSPT, socket weld
- Pressure rating
- 6,000 psig @ 100°F (414 bar @ 38°C), metal seated
- Temperature limit
- 450°F (232°C) PTFE packing · 1,000°F (538°C) Grafoil packing
- Body material
- ASTM A182 F316 (options: 304 SST, carbon steel, Hastelloy, Monel)
- Flow
- Orifice 0.18" · Cv 0.45
Models
| Model | Sizes | Configuration |
|---|---|---|
| MGV1 | 1/2" – 3/4" | Gauge valve, block & bleed with vent plug |
| MGV2 | 1/4" – 3/4" | Block & bleed with integral bleed valve |
| MGV2-LE | 1/4" – 3/4" | Block & bleed, long-extension pattern |
| MGV-2B | 1/4" – 1/2" | Male inlet × male outlet — mounts directly on the gauge or transmitter port, one less threaded connection |

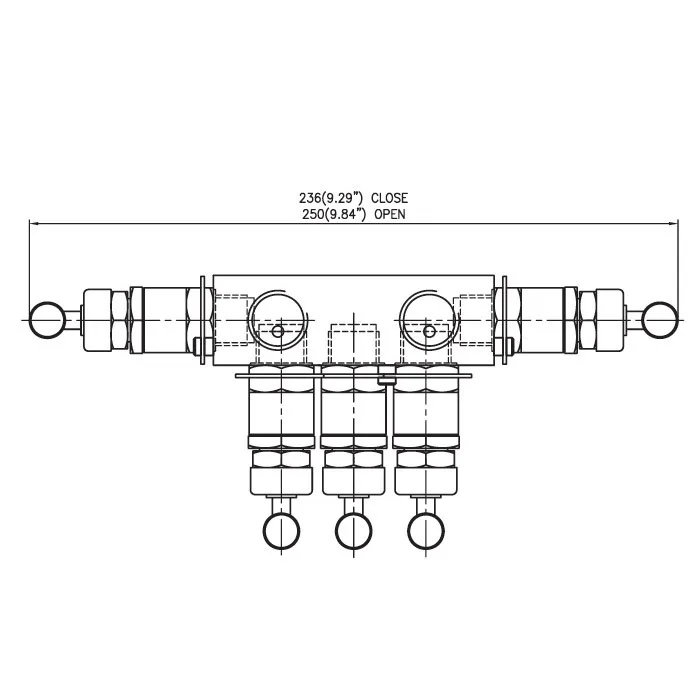

Instrument Manifolds — MMV Series
2-, 3- and 5-valve manifolds for pressure and differential-pressure transmitters, including coplanar patterns for direct mounting. ASTM A182 F316 body with heat-code traceability, non-rotating stem tip and integral hard & soft seats.
Technical data
- Sizes
- 1/4" – 1/2"
- End connections
- NPTF, BSPT, BSPP, flanged
- Pressure rating
- 6,000 psig @ 100°F (414 bar @ 38°C), metal seated
- Temperature limit
- 450°F (232°C) PTFE packing · 1,000°F (538°C) Grafoil packing
- Materials
- 316 SST, 316L, 304, 304L, carbon steel, Hastelloy, Monel
- Traceability
- Heat-code traceability
Models
| Configuration | Mounting patterns |
|---|---|
| 2-valve (2VLV) | Pipe-to-pipe (angle / straight), pipe-to-flange, flange-to-flange |
| 3-valve (3VLV) | Pipe-to-pipe, pipe-to-flange, flange-to-flange, coplanar direct-mount |
| 5-valve (5VLV) | Pipe-to-pipe, pipe-to-flange, flange-to-flange, coplanar direct-mount |

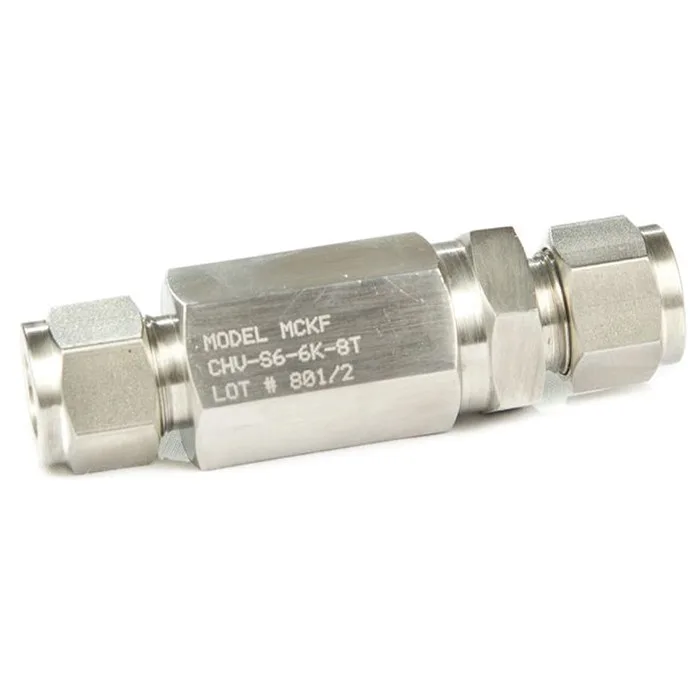

In-Line Check Valves
Compact in-line poppet check valves that stop reverse flow on instrument and small-bore process lines, with Viton O-ring seals and 316 SST internals. Every valve is tested prior to dispatch.
Technical data
- Sizes
- 1/8" – 1"
- End connections
- NPT, BSPP, BSPT, tube fitting
- Pressure rating
- 1,000 – 10,000 psi @ 100°F (414 bar @ 38°C)
- Cracking pressure
- 1 – 25 psi
- Materials
- 316 SST, 304 SST, carbon steel, Monel, brass, Hastelloy
- Seals
- Viton O-rings
Models
| Model | Sizes | Ends |
|---|---|---|
| MCKF | 1/8" – 1" | NPT female / male, tube OD |
High-Pressure Ball Valves
Three-piece, full-port quarter-turn ball valves for high-pressure hydraulic applications — blow-out-proof stem, barstock or forged body, pipe threads to ANSI B2.1 / B1.20 (NPTF), BS 21, DIN 259/2999 and ISO 228.
Technical data
- Sizes
- 1/4" – 1"
- End connections
- NPT, BSPP, SAE, tube OD
- Working pressure
- 6,000 psi @ 70°F
- Temperature limit
- 450°F (232°C) GFT packing · 700°F (371°C) PEEK packing
- Body materials
- ASTM A351-CF8M / A182-F316, A351-CF3 / A182-F304, A216-WCB / A105 (Hastelloy, Monel on request)
- Seats
- Delrin or PEEK · Standards: MSS SP-99, BS 5750
Models
| Model | Sizes | Orifice | Construction |
|---|---|---|---|
| 36K | 1/4" – 1" | 0.20" – 0.79" | 3-piece body, full port |
Tested before it ships
Every valve, pressure tested
Each Morris instrumentation valve is verified before dispatch — so the hookup holds the first time it is pressurized.
Request a Quote →- ✓ Hydrostatic shell test at 1.5× working pressure
- ✓ Nitrogen test at 1,000 psi for seat & packing leakage on every valve
- ✓ Material traceability · EN 10204-3.1 certificates on request
Need a Morris instrumentation valve?
Send us the model, size and end connection — we’ll confirm the full dimensional tables, part numbers and materials for your duty and quote it fast from our Orlando, FL warehouse.
