Morris Tube Fittings
Morris double-ferrule tube fittings give fluid-system operators the reliability, easy installation and leak-tight performance needed to keep instrumentation, pneumatic, hydraulic and gas tubing systems operating safely — eliminating hazardous leaks that turn out costly to the installation.

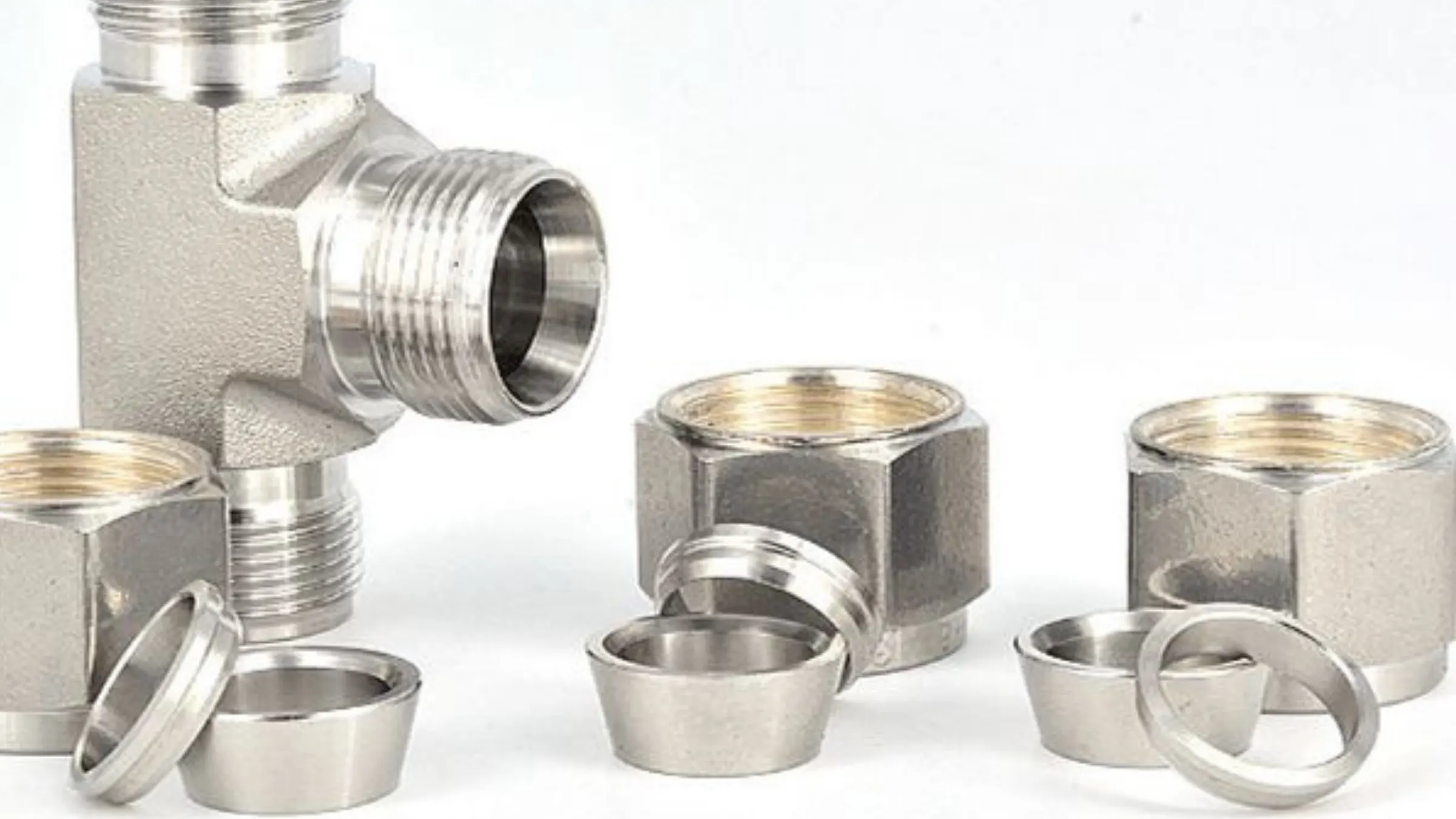

Each Morris fitting is a four-piece, twin-ferrule design — nut, back ferrule, front ferrule and body — that becomes a five-piece, leak-free joint once the tubing is installed. The sequential action of the twin ferrules compensates for variations in tube wall thickness, hardness and dimensional tolerance — the variables that lead to failure in other fittings. No special tools are required, and fittings are reusable several times while withstanding heavy impulse and vibration in both vacuum and pressure systems.
The range covers tube-to-tube unions, elbows, tees and reducers, tube-to-female-NPT connectors, tube-to-male-NPT connectors and precision pipe fittings — all in stainless steel with internally silver-plated nut threads to prevent galling, and available in Monel, Hastelloy and Inconel, including NACE-standard options. Cross-reference to equivalent part numbers is available on request.
Tube Fitting Categories
Tube × Tube — Unions, Elbows, Tees & Reducers
- UF — Union, fractional
- URF — Union reducer, fractional

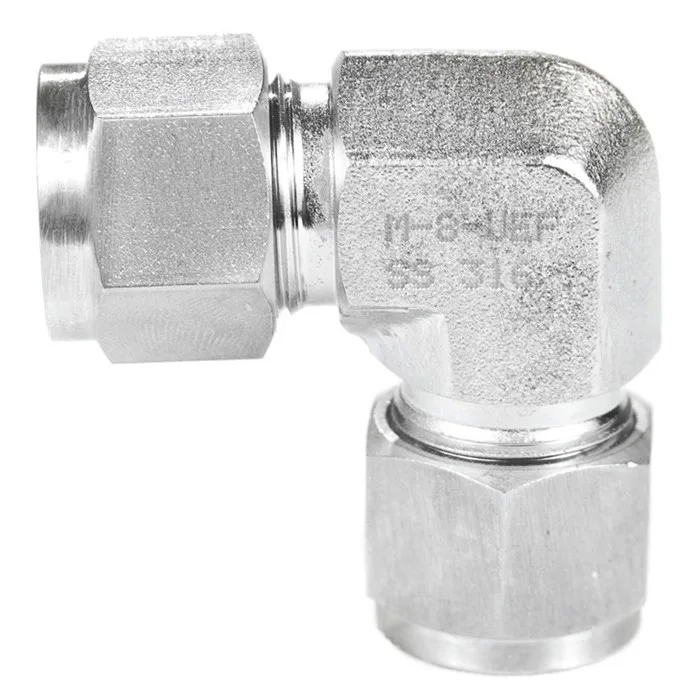

- UEF 90 — Union elbow 90°, fractional
- UERF — Union elbow reducer, fractional
Tube × Female Pipe Thread — Connectors
- FC — Female connector
- FE — Female elbow
- FRT — Female run tee
- FBT — Female branch tee
Tube × Male Pipe Thread — Connectors

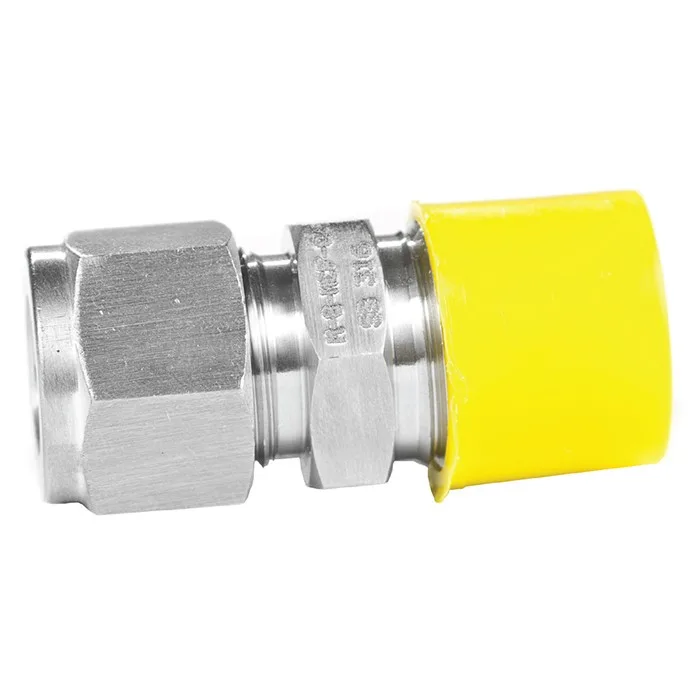

- MC — Male connector
- ME 90° · ME 45° — Male elbows, 90° and 45°
- MRT — Male run tee
- MBT — Male branch tee
Precision Pipe Fittings
- HLN — Hex long nipple

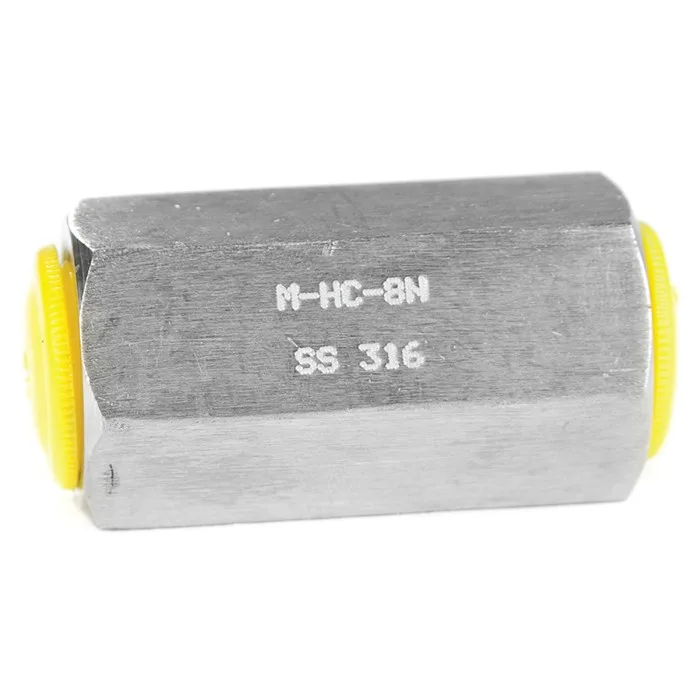

- HC — Hex coupling
- PFT — Pipe female tee
- PFC — Pipe female cross — NPT(F) × 3 sides
Tube × Tube — Unions, Elbows, Tees & Reducers
Double-ferrule unions joining fractional tube to fractional tube — the building blocks of every instrumentation tubing run, from straight unions to reducing tees and crosses.
Technical data
- Sizes
- 1/16" – 1" tube OD
- Ends
- Fractional tube (OD), double ferrule
- Material
- 316 SST (Monel, Hastelloy, Inconel and NACE on request)
- Thread protection
- Internally silver-plated nuts against galling · protective caps
Types
| Type | Description |
|---|---|
| UF | Union, fractional |
| URF | Union reducer, fractional |
| UEF 90 | Union elbow 90°, fractional |
| UERF | Union elbow reducer, fractional |
| UTF | Union tee, fractional |
| UTRF · UTRYF · UTRXF · UTRBF | Union reducing tees — all-different, run-Y, run-X and branch patterns |
| UCF | Union cross, fractional |
Tube × Female Pipe Thread — Connectors
Connectors, elbows and tees that transition from double-ferrule tubing to female NPT pipe threads — where the impulse line meets the process connection.
Technical data
- Sizes
- 1/8" – 1" tube OD
- Ends
- Fractional tube (OD) × NPT female
- Material
- 316 SST (Monel, Hastelloy, Inconel and NACE on request)
- Thread standard
- ANSI B1.20 (NPT)
Types
| Type | Description |
|---|---|
| FC | Female connector |
| FE | Female elbow |
| FRT | Female run tee |
| FBT | Female branch tee |
Tube × Male Pipe Thread — Connectors
Male-thread connectors, elbows and tees for mounting tubing runs into threaded ports on instruments, manifolds and process equipment.
Technical data
- Sizes
- 1/16" – 1" tube OD
- Ends
- Fractional tube (OD) × NPT male
- Material
- 316 SST (Monel, Hastelloy, Inconel and NACE on request)
- Thread standard
- ANSI B1.20 (NPT)
Types
| Type | Description |
|---|---|
| MC | Male connector |
| ME 90° · ME 45° | Male elbows, 90° and 45° |
| MRT | Male run tee |
| MBT | Male branch tee |
Precision Pipe Fittings
Threaded pipe tees, crosses, couplings and nipples for small-bore pipe connections around instruments and auxiliaries — machined to the same quality standard as the tube-fitting line.
Technical data
- Sizes
- 1/8" – 2" (per type)
- Ends
- NPT female / male
- Material
- 316 SST (Monel, Hastelloy, Inconel and NACE on request)
- Thread standard
- ANSI B1.20 (NPT)
Types
| Type | Description |
|---|---|
| HLN | Hex long nipple |
| HC | Hex coupling |
| PFT | Pipe female tee |
| PFC | Pipe female cross — NPT(F) × 3 sides |
Qualified to ASTM F1387-99
A fitting is only as good as its test program
Morris fittings are qualified under the test program specified in ASTM F1387-99 at recognized laboratories.
Proof pressure
1.5× maximum working pressure, held 5 minutes without leak
Remake test
25 disassembly/reassembly cycles, then proof pressure again
Hydraulic burst
Up to 4× working pressure, held 5 minutes without leak
Static vacuum
Down to 700 mbar negative pressure, held 15 minutes
Impulse & vibration
5×10⁶ pressure impulses with simultaneous two-plane vibration
Optional
Temperature-cycling and helium leak test (≤ 2×10⁻⁶ std cc/sec)
Need Morris tube fittings?
Send us the type, tube OD and thread — we’ll confirm the full dimensional tables, part numbers and materials for your duty and quote it fast from our Orlando, FL warehouse.
